The basics of all-in-one solar street lights
1.Basic introduction
Solar integrated light, also known as integrated solar street light, is a high-efficiency solar panel, 8-year ultra-long life lithium battery, high luminous efficiency LED and intelligent controller, PIR human induction module, anti-theft installation bracket and other concentrated in one solar street light, also called solar integrated solar street light or integrated solar street light.

2. Working principle
The integrated solar street light is converted into electrical energy by the solar panel, and then the lithium battery in the integrated solar street light is charged. During the day, even on cloudy days, this solar generator (solar panel) collects, stores the required energy, and automatically supplies power to the LED lights of the integrated solar street lights at night to achieve night lighting, while the integrated solar street lights have PIR human body sensing function, which can realize the infrared induction control lamp working mode of the intelligent human body at night, 100% bright when there are people, and the unmanned time delay automatically changes to 1/3 brightness after a certain period of time, intelligently saving more energy. At the same time, solar energy, as an “inexhaustible, inexhaustible” safe and environmentally friendly new energy, has played an important role in integrated solar street lights.
Solar energy generally refers to the radiant energy of sunlight and is generally used as power generation in modern times. Since the formation of the earth, living things have mainly survived on the heat and light provided by the sun, and since ancient humans also understood that sunlight can dry objects and use it as a method of preserving food, such as salt and salted fish. However, under the reduction of fossil fuels, it is intentional to further develop solar energy. There are two ways to use solar energy: passive utilization ( photothermal conversion) and photoelectric conversion. Solar power is an emerging renewable energy source. Solar energy in a broad sense is the source of many energy on Earth, such as wind energy, chemical energy, water potential energy and so on.
Solar integrated street light/garden light is an integrated solar product, simple shape integrates today’s best green energy mix (solar panels, ultra-bright semiconductor LED light source, lithium iron phosphate battery). Equipped with human body intelligent sensing system, it realizes low power consumption, long time, and high brightness.

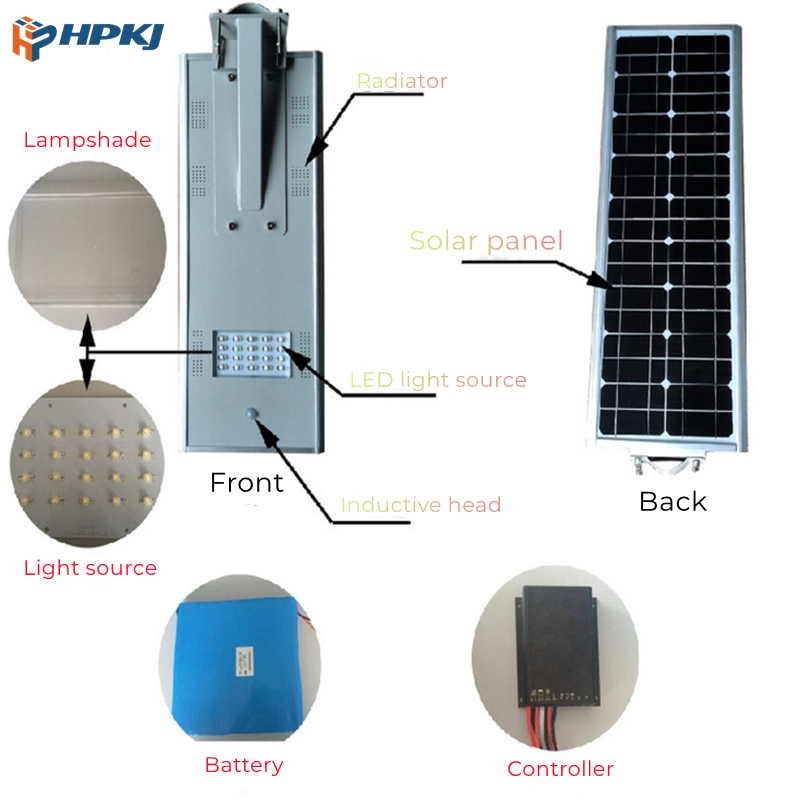

3. Structural composition
The main components of solar integrated lamp (integrated solar street light): integrated lamp (built-in: high-efficiency photovoltaic module, large-capacity lithium battery, microcomputer MPPT intelligent controller, high-brightness LED light source, PIR human body induction probe, anti-theft installation bracket), lamp pole two parts. The five parts of the split solar street light are relatively scattered, and they should be assembled one by one when installing. The all-in-one solar street light integrates all the components except the lamp post to make a lamp head. This lamp head is a stand-alone intelligent power generation and discharge system that can be used without complex assembly, only a lamp post or support arm. Integrated solar street light is a kind of solar street light, which mainly uses high-power semiconductor LED light source, with energy saving and environmental protection, long service life, using solar drive technology, no need to erect power grid, no need to erect street lamp poles, flexible use, suitable for urban road center area and other places lighting.

The features of integrated solar street lights
1. Performance upgrade
The integrated solar street light has a compact structure and compact shape. To show its advantages, its design and performance have been upgraded. For example, the batteries all use high-quality lithium iron phosphate batteries and high-conversion rate monocrystalline silicon cells. Great efforts have been made in appearance, waterproofing, and connections between parts.
2. Easy to install
Integrated design, no need to pull wire, installation is extremely convenient, can use a variety of installation methods, save time and labor and effort, can be installed on the wall as needed to do wall-hung street lights, can also be installed on the pole for road lighting, can also be installed on the support with better lighting, as long as a few screws can be, very convenient. The steps of installing panel brackets, installing lamp holders, and making battery pits in traditional split solar street lights are eliminated, which greatly saves labor and construction costs.
3. Novel and beautiful
Integrated solar street lights integrate solar panels and light sources, and some even integrate lamp posts, with diverse shapes and novel and beautiful. Light source, controller, battery, solar panel organically combined, compact shape, coupled with process progress, save space and materials, reduce material costs.

The application range for Integrated solar street lights
1. Road lighting
Urban main roads, mainly including both sides of urban main roads, important functional areas, commercial areas, residential areas, etc., street lamps are not high bright, low brightness, suitable for night lighting. Reliable traffic road lighting When night comes, a street lamp needs to be lit on the road to provide light for pedestrians passing by. Although the traditional street lights used before can also bring light, they are not strong in durability and have disadvantages in energy saving. Nowadays, solar street lights are widely used and can illuminate various traffic roads, and the installation of integrated solar street lights is first reduced in cost. No waste of electricity, is an environmentally friendly way of lighting. At the same time, the installation is one-time, there is no additional maintenance cost in the future, and the application is more worry-free. Not only that, compared with traditional street lights, this solar street lamp operates safely and reliably, alleviating many safety hazards and safe lighting.
2. Municipal lighting
Suitable for municipal roads, sidewalks, underpasses, pedestrian bridges, etc. Not only can integrated solar street lights be installed on the roads in modern areas, but now the integrated solar street lights are more widely applicable, and integrated solar street lights can be installed in some rural areas with more complex geographical environments or mining areas that are not easy to pull electricity. Its main components are solar panels, intelligent controllers and brackets. Because the structure is simple and the material is light and easy to transport and install, it can be easily applied even in some areas with complex geographical environments.
3. Landscape lighting
It is suitable for road lighting in parks, squares, scenic spots, gardens, and scenic areas. Nowadays, the role of street lamps is not only lighting, but also the role of decorating the environment, integrated solar street lights can also be installed in parks and scenic spots, because now this street lamp is not only simple to install, environmentally safe and long life, in the outer ring design is also diverse, novel and beautiful, if installed in the park scenic area can also bring aesthetic pleasure.

The instructions for use of all-in-one solar street lights
1.Integrated solar street light (solar integrated street light) work can not leave the sun, please choose the appropriate product model according to the sunshine intensity of the installation site or the total annual radiation of solar energy. In areas with insufficient sunshine or continuous rainy days for too long, the working time of solar lamps will be shortened or not bright, in this case, it is recommended to choose solar integrated street lights with mains compensation and mains/solar dual power supply function.
2. Integrated solar street lamp adopts long-life lithium-ion battery as energy storage device, the charging conditions during the day are 0~60 °C, and the charging efficiency will be greatly reduced when it is lower than 0 °C, and it will return to normal when the temperature rises. At night, the discharge condition is -20 ~ 60 °C, beyond this range will destroy the battery performance and will greatly shorten the discharge time. When using this solar integrated street light, please make sure that the local temperature will not exceed the above conditions.
3. The longest storage period of integrated solar street lights after full charge is six months, such as after a long period of transportation or storage, it needs to be checked in time, charged regularly and recorded, otherwise the battery will be damaged.
4. If this product is installed in the northern hemisphere, make the solar panel face the south as much as possible to obtain the maximum light energy; If it is in the Southern Hemisphere, the solar panels are installed facing north. At the same time, it is necessary to avoid the shadow of obstacles such as houses and trees, which will reduce the power generation efficiency of solar panels, resulting in their working time being shortened.
5. The cleanliness of the surface of the integrated solar street lamp solar panel will also affect the power generation efficiency of the solar panel, so its surface (such as dust, leaves, oil, etc.) needs to be cleaned, it is recommended to brush it regularly with ordinary detergent.

The installation instructions for integrated solar street lights
1. Choose the best location for lighting to arrange the lamp pole, the lamp pole should use 3-6m, diameter 50-90mm, wall thickness greater than 2.0mm iron or steel rod.
2. Please check whether the parts are complete before opening the package.
3. When installing products with mains type, the cable should be prearranged in the lamp pole, and a hole should be punched to introduce the cable on the side of the lamp installed at the top of the lamp pole. In the case of confirming that the power supply is disconnected, connect the cable with the lamp input wire, and pay attention to the identification of the power input line. Then carefully wrap it with waterproof electrical tape (this step is limited to mains compensation products).
4. Insert the key into the electronic keyhole, rotate it clockwise to the green dot, and pull out the key.
5.Put the lamp into the lamp pole and use special tools to tighten the anti-theft screws to ensure that the lamp is stable.
